Control panels

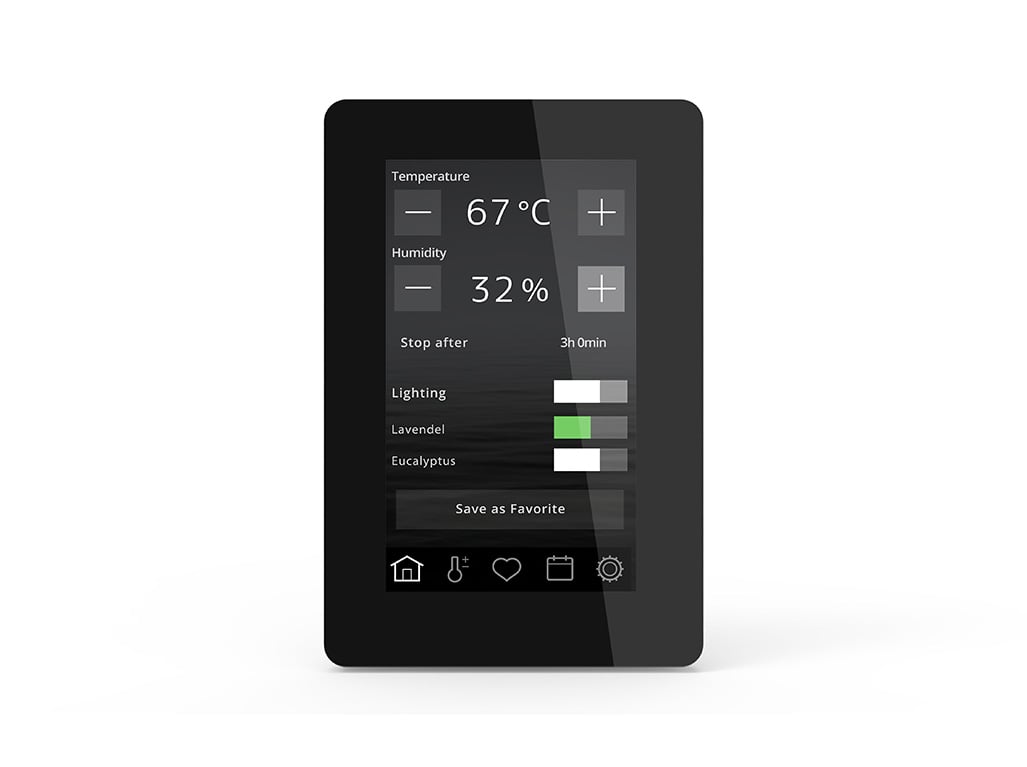

Elite Cloud control panel

The new control panel Elite Cloud has been updated with cloud-based functionality so you can control your sauna from anywhere! Why not have it ready when you come in from the ski slope or an exhausting car ride on the way home from work. It is packed with advanced features, thanks to its internal processor and operating system. In addition to highly personalized settings, the Elite Cloud can be individually programmed according to your own schedule.

Add features such as auxiliary fans, fragrance pumps or lights – the Elite Cloud control panel handles it all with clear and concise precision. The 4.5-inch touch screen delivers real-time status on every aspect of your sauna and steam bath. Needs to be completed with a door contact for cloud functionality.

Download Tylö Control™ app in App-store and Google-Play or use Program for PC.

See all downloads >>

Elite Cloud is compatible with both steam and sauna. The Tylö Control smart phone app provides full mobility.

With the Tylö Control app, you are always in control. Whether you’re reading in your favorite chair or in the backyard mowing the lawn.

Control your sauna and steam functions via your local WiFi-network. Use your PC or mobile device for full flexibility.

Product specification
Size WxHxD (mm) 85 x 127 x 12
For Sauna Yes
For Steam Yes
Article no. 72005040
Placement of the control panel We recommend to place it outside the sauna because of the lower temperature. You can place it in a Tylö Harmony room or a place built sauna if the ventilation is according to Tylö principle, the natural draught ventilation, and placed at least 300 mm from the heater and maximum height of 800 mm from the floor. If not, place it on the outside of the sauna. The surrounding temperature shall not exceed 80°C.



Suitable sauna heaters

Sauna heater Relay box required?
Sense Elite No
Sense Combi Elite No
Expression Yes, Commercial Lite
Sense Commercial 6-10 kW Yes, Commercial Lite
Sense Commercial 16-20 kW Yes, Commercial



Suitable steam generators

Steam generator Relay box required?
Steam Home No
Steam Commercial No
