Wood burning sauna heaters

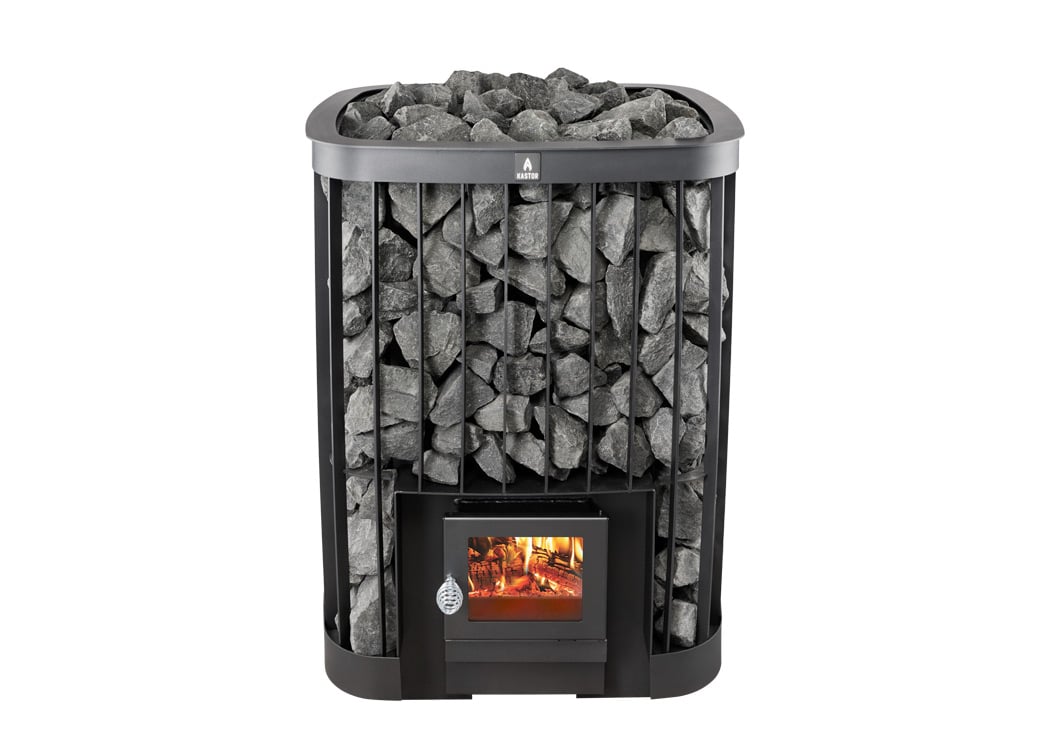

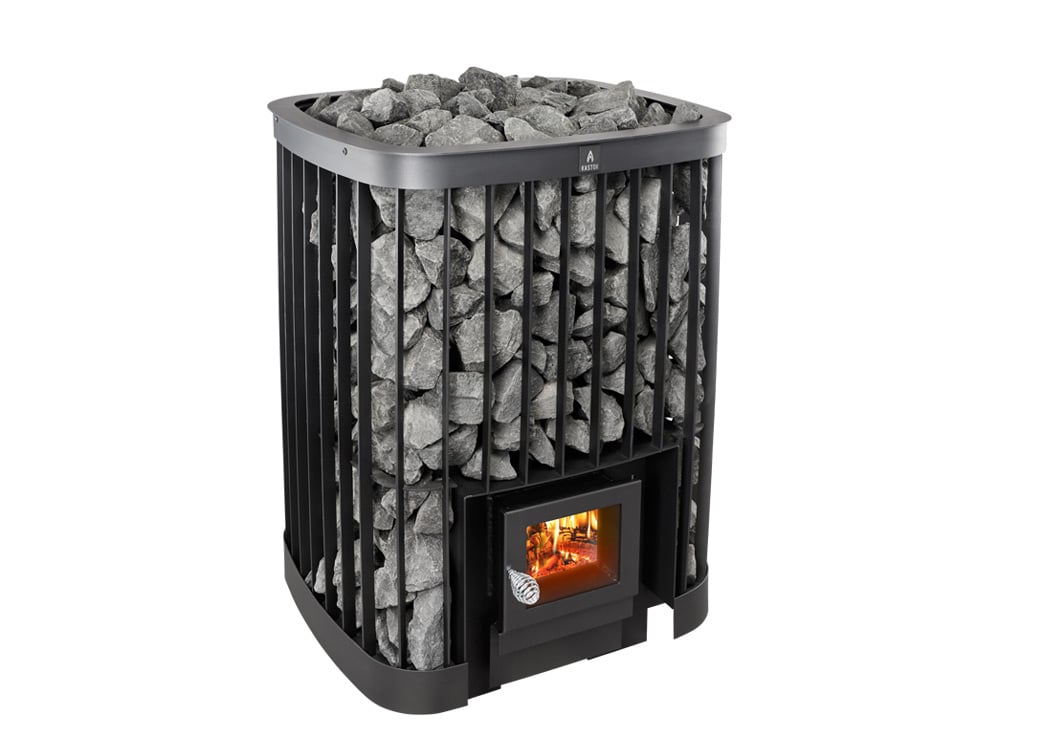

Saga wood burning heater

Wood burning heater Kastor Saga provide wave after wave of the softest, most comfortable heat and steam. Its forged steel bars are made to last for years of flawless performance. The rugged style of Kastor Saga makes it a centrepiece for your sauna interior.

See all downloads >

Impressive heat retaining properties.

Offers soft and comfortable heat and steam.

CE-marked heater.

Chimney basket is available as accessory.

Product specification
Colors Installation
Dark grey Floor standing


Technical inforamtion

Type

Product code

Sauna Size (m3)

Size (WxDxH)

Stones (kg)

Weight (kg)

Flue opening (mm)

Saga 22 289089 12-22 600x585x825   145-150 93 115
 Saga 22 T 289097  12-22  600x585x825  145-150  115  115
Saga 30  289090 20-30  675x585x930 195-200 109 115
Saga 30 T  289098  20-30 675x585x930 195-200 140  115
Front frame for T models, Chrome 091002  -  -
Front frame for T models, painted black 098128  -  -  -  -

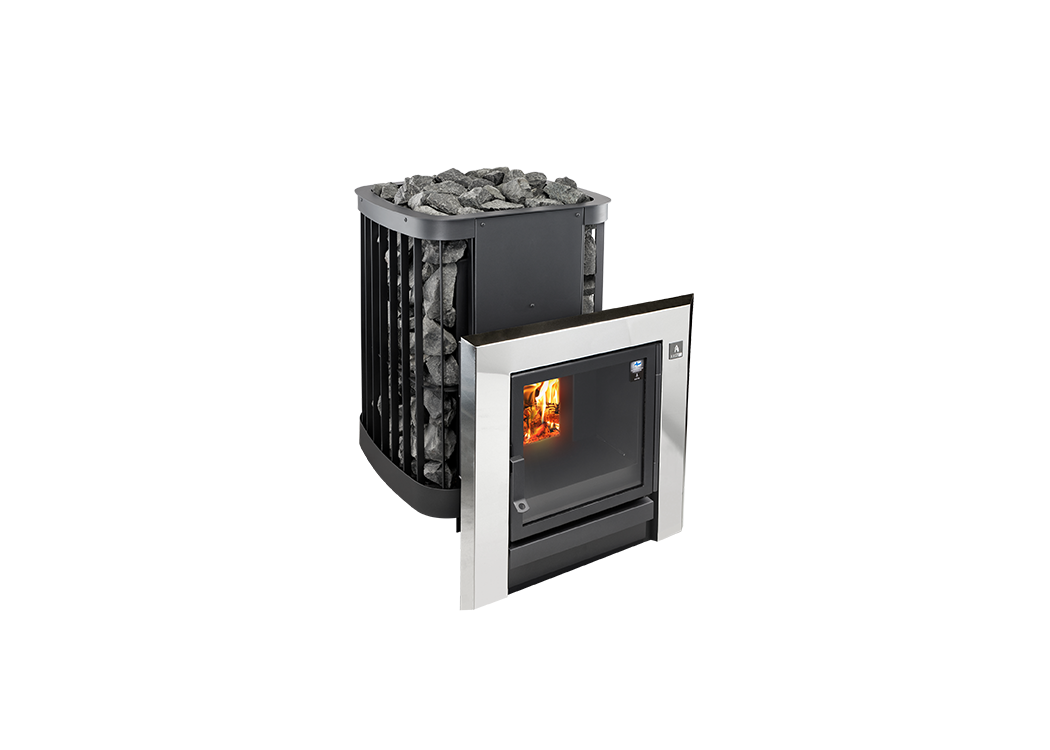

T= tunnel model (through the wall)
Saga 22/30 T does not include the front frame. Available as accessory.


Safety distance

Model Front (mm) Side (mm) Back (mm) Ceiling (mm)
Saga 22 500 250 250 1400
Saga 22 T 500 250 50 1400
Saga 30  500 250 250 1400
Saga 30 T  500 250 50 1400

Do not place on burning material without a protective base
