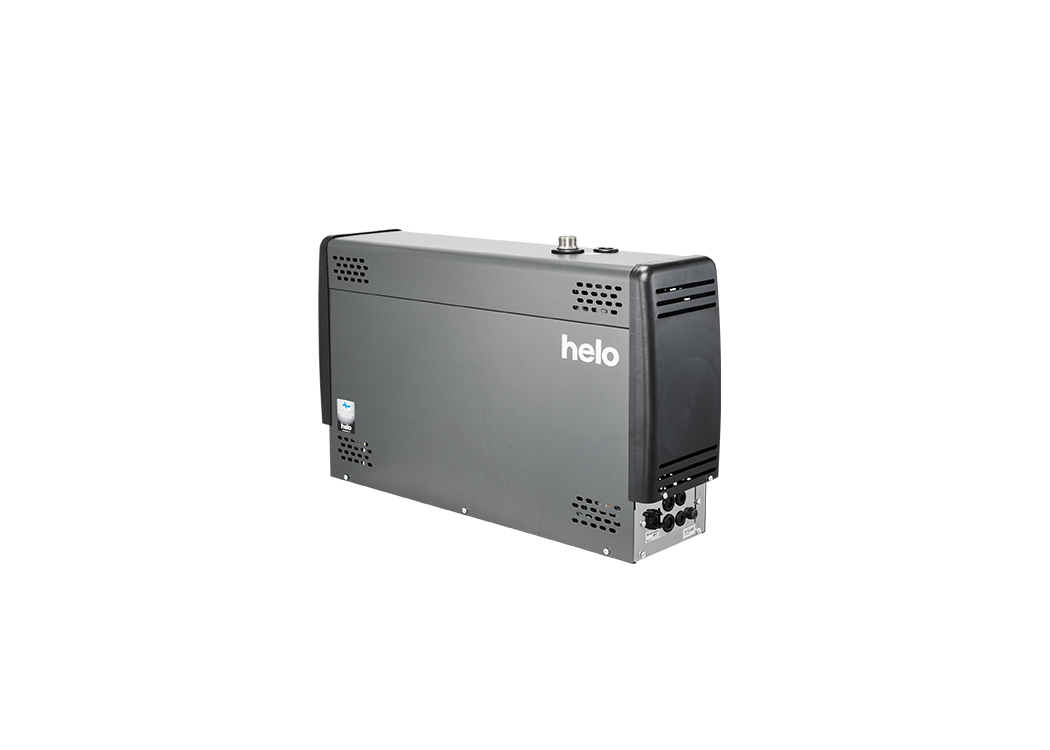

Helo Steam Pro steam generator

The Helo Steam Pro generator automatically prevents overheating and dry running. It saves time on maintenance and down time with automated flush function. There is also the possibility to run several units through serial connection.

See all downloads >>
Larger steam and drain outlets for added comfort and performance.
Engineered to withstand many years of use without interruption and with a minimum of attention and maintenance.
Prepared for optional features such as auxiliary fans and fragrance.

Use with Elite control panel for convenient remote control via Wifi.
Find your dealer
Product specification

Helo Steam PRO
Power (kW) Art. Steam production (kg/h) Size in mm (LxWxH) Suitable control panel Color
9,5 002104 13 636x380x164 Elite/Pure Black
12 002105 16 636x380x164 Elite/Pure Black
14 002106 19 636x380x164 Elite/Pure Black
16 002107 21 636x380x164 Elite/Pure Black



Steam room's min./max. volume (m³)

Power (kW) Light wall made of glass, plastic etc. Heavy wall made of tiles, concrete, stone etc.
With ventilation Without ventilation With ventilation Without ventilation
9,5 9-13 9-17 6-9 5-6
12 11-18 12-24 8-12 9-16
14 14-22 18-30 10-14 11-17
16 17-25 23-35 12-16 12-18
