Tylö Steam generator Commercial

Steam generators

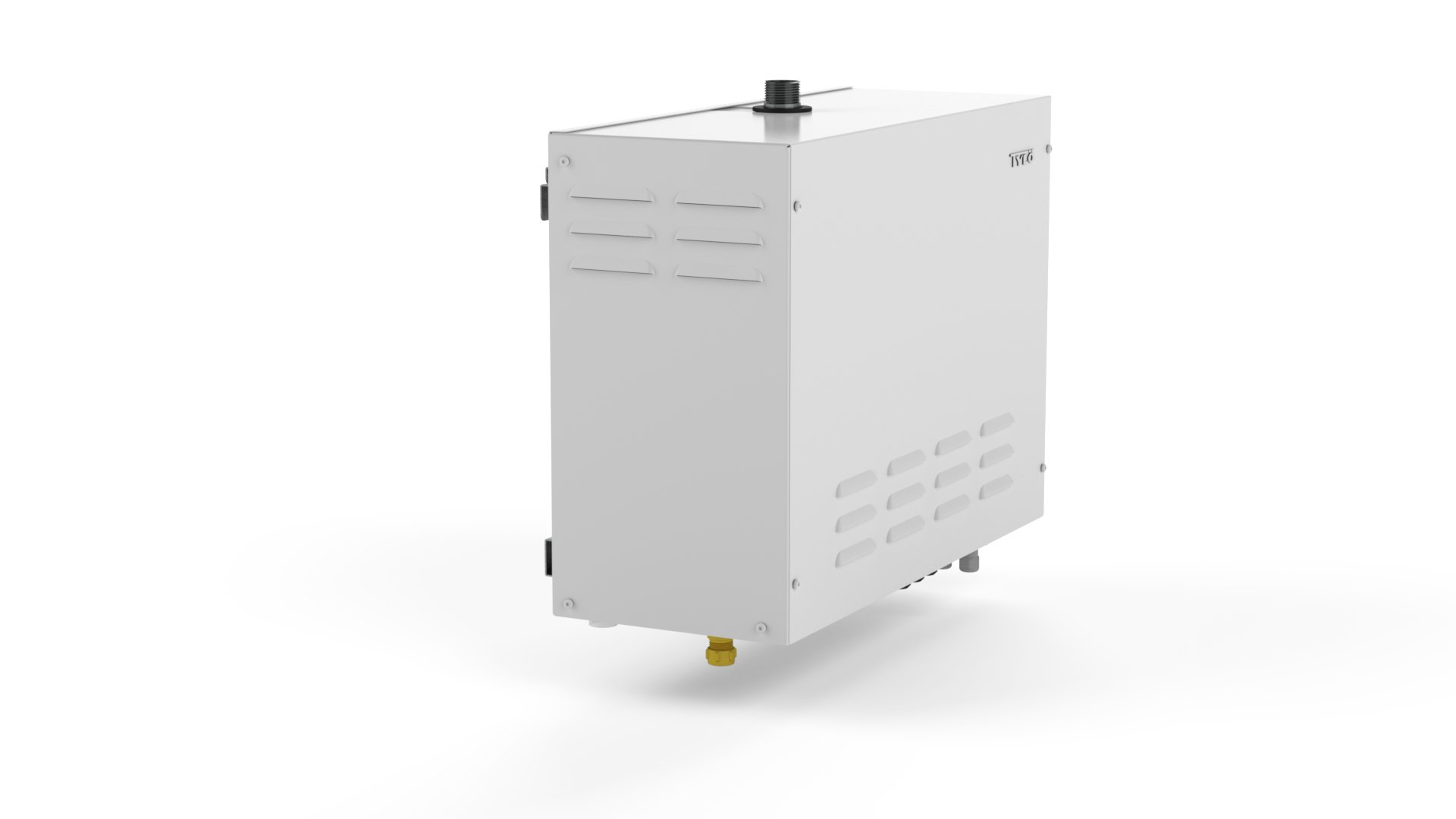

Steam Commercial steam generator

Commercial steam generator for public facilities with a new standard in smart solutions for maximum output. Minimum water consumption, energy efficiency through patented divided output feature. Two-way communication between the control panel and the steam generator provides automatic and constant monitoring of steam and temperature.

See all downloads >

Large water tank and Multi Steam feature to minimize interruptions at peak use.

Control your steam bath directly from the Elite control panel or connect wirelessly via your PC or mobile device.

Automatic flush which can be calibrated to the water quality in your area.

Possible to fit features such as auxiliary fans, fragrance and descaling pumps.

Product specification

Steam Commercial

Power (kW) Art Steam production (kg/h) Size in mm (LxWxH) Suitable control panel Color Minimum distances (mm) side/front/ceiling/floor
9 66210010 12 585x415x230 Elite or Pure White 40/80/1100/120
12 66210015 16 585x415x230 Elite or Pure White 40/100/1100/120
15 66210020 20 585x415x230 Elite or Pure White 80/150/1100/150



Technical information

Steam room's min./max. volume (m³)

Power (kW) Light wall made of glass, plastic etc. Heavy wall made of tiles, concrete, stone etc.
With ventilation Without ventilation With ventilation Without ventilation
9 6-16 13-24 4-10 7-16
12 14-22 22-30 8-15 14-20
15 18-25 28-38 10-19 18-25
2 x 9 20-30 28-40 13-20 18-30
2 x 12 28-40 38-50 18-30 28-40
2 x 15 36-50 56-76 32-42 42-57
3 x 9 38-45 46-60 28-40 38-52
3 x 12 43-60 58-70 38-50 48-60
3 x 15 54-75 84-114 47-63 60-75
